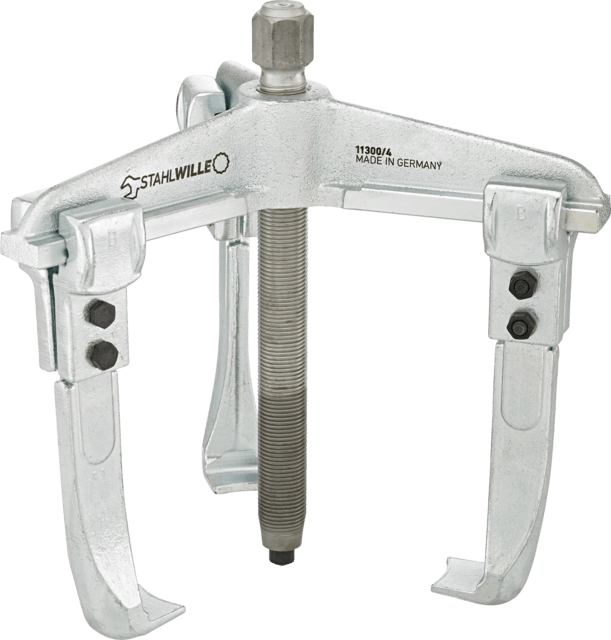

Stahlwille 71030005 - Three-arm extractor 250 x 200 mm

For the quick and safe disassembly of gears, ball bearings, fan belts and for the extraction of outer rings of ball bearings and bushings of drill sets.

Characteristics

• The even distribution of the load over 3 extractor hooks ensures a secure grip and centered extraction.
• The adjustable extraction hooks allow for universal use as an external or internal extractor.
• Excellent resistance to bending thanks to the legs with precision-made profiles and smooth, milled guides.
• The nitrided surface of the spindle allows for effortless movement, so no additional lubrication is required.
• 3-arm puller with sliding and always parallel puller hooks for gears, ball bearings, pulleys and similar parts from a shaft or axle for ball bearings, outer ball bearing rings and sockets out of drill sets reversible arms for use as internal and external pullers nitrided spindle, lubrication-free, maintenance-free stable design, galvanized
• Size: 5
• External drive hexagon (mm): 27 mm
• Number of hooks: 3
• Max. load: 7.5 t
• Clamping depth mm: 200 mm
• Max. exterior light mm (w1): 250 mm
• Max interior span mm: 400mm
• Minimum interior light (mm): 100 mm
• Spindle thread size: G 3/4 x 280
• Hook foot width mm (b): 36 mm
• Hook foot depth mm (c): 28 mm
• Hook tip thickness mm (a): 7 mm
• Weight (g): 9300 g
• Weight in kg: 9 kg
