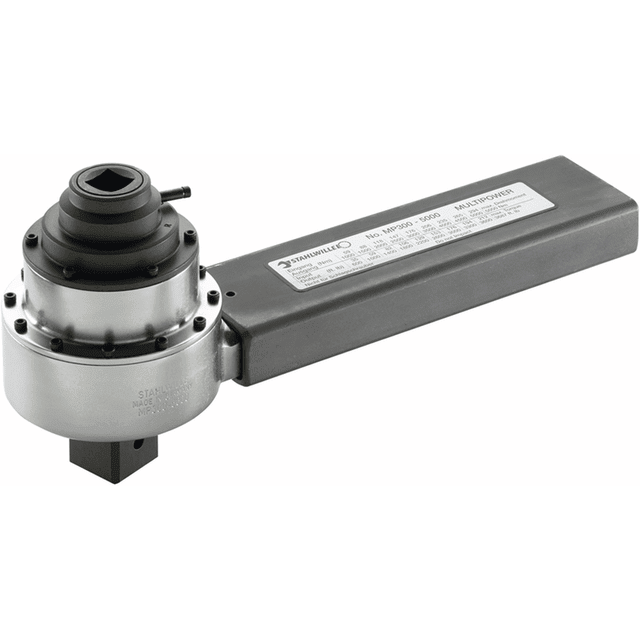

Stahlwille 53035000 - Torque Multiplier 5000 N·m

Stahlwille 53035000 - Torque Multiplier 5000 N·m

Prix habituel $10,042.00
Prix habituel Prix promotionnel $10,042.00
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Stock bas : 1 restant(s)

Quantité

with overload protection and planetary gearing

Characteristics

  • with overload protection and planetary gear in a carrying case with a spare planetary gear (overload protection) deviation in the indication of ± 5%
  • Size: 5000
  • Length mm (L): 400 mm
  • Width mm (b): 120 mm
  • Height mm (h): 180 mm
  • Outside square [inches]: 1 1/2"
  • Torque ratio: 1 : 17.0
  • Transmission ratio: 20:1
  • Square bushing [inches]: 3/4"
  • Max. output capacity E1: 5000 N
  • m
  • Maximum output capacity E2: 3687 ft
  • lb
  • Max. input capacity E1: 294 N
  • m
  • Maximum inlet capacity E2: 217 ft
  • lb
  • Weight (g): 10400 g
  • Weight with box: 14000 g
  • Weight in kg: 14 kg
