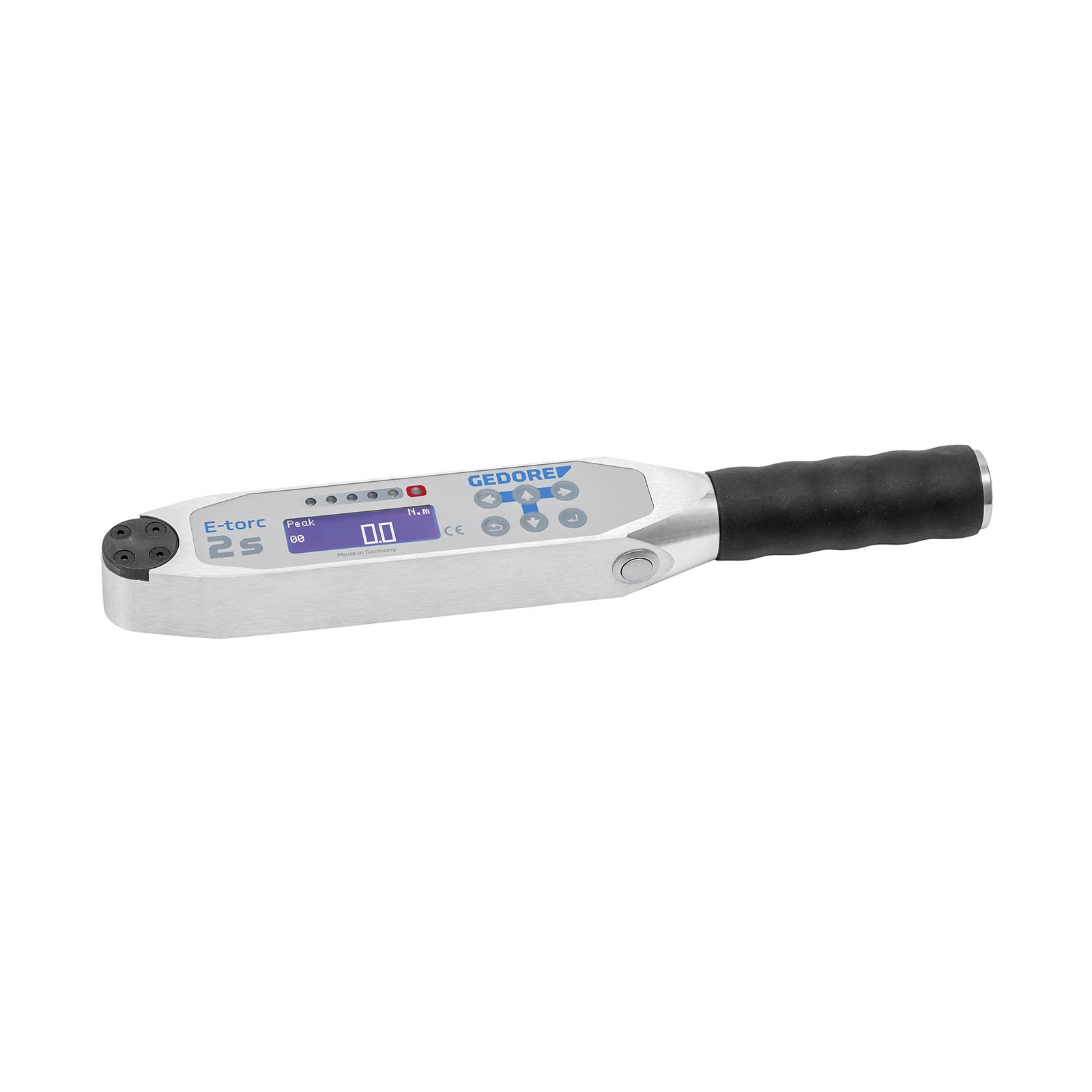

GEDORE ET2SKA 25 - Dina E-torc2 1/4" 2-25Nm

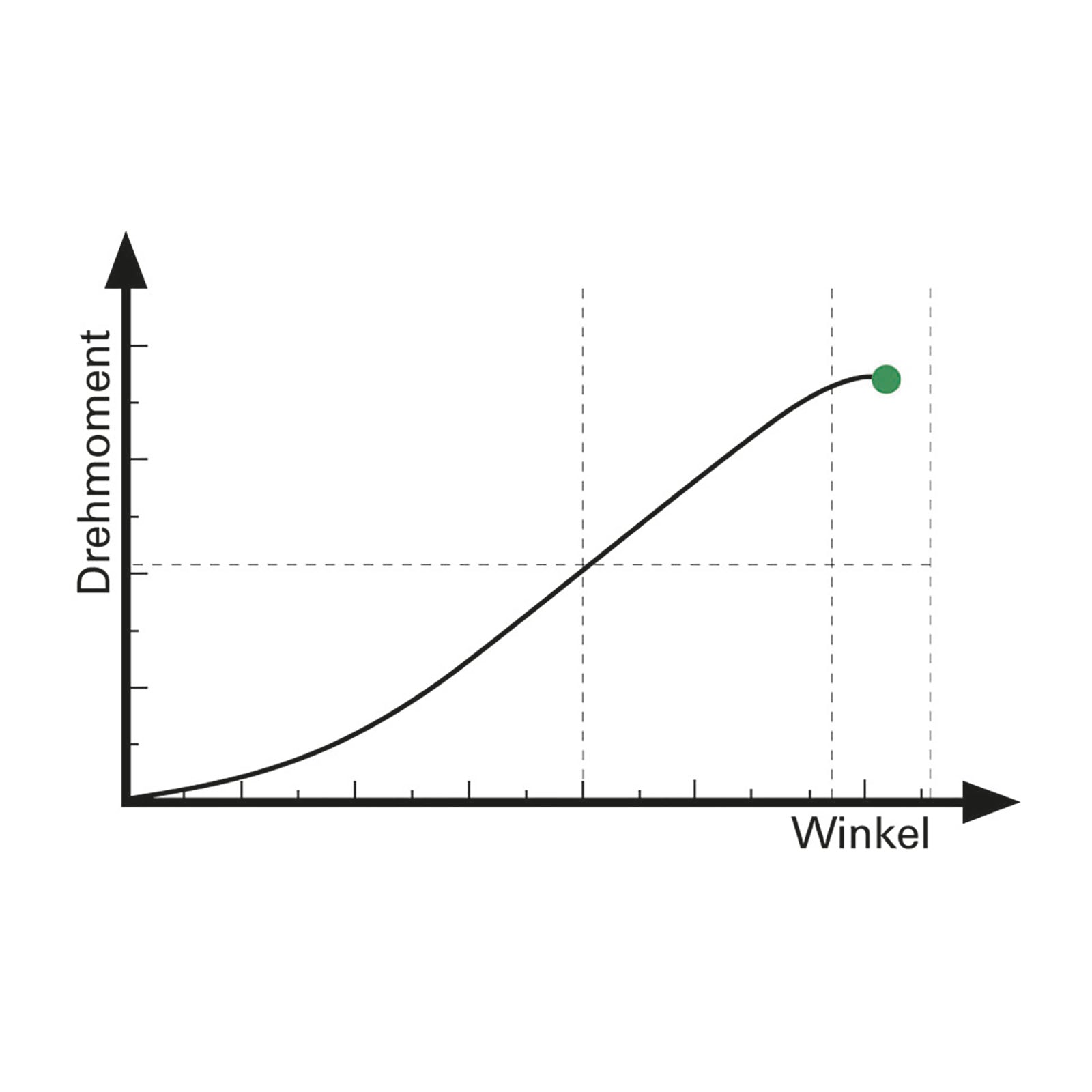

Tightening control for tightening torque/angle of rotation:

• Optical, acoustic and sensory signal emission when the set tightening torque is reached / with additional visualization of the screw tightening thanks to an LED progress bar.

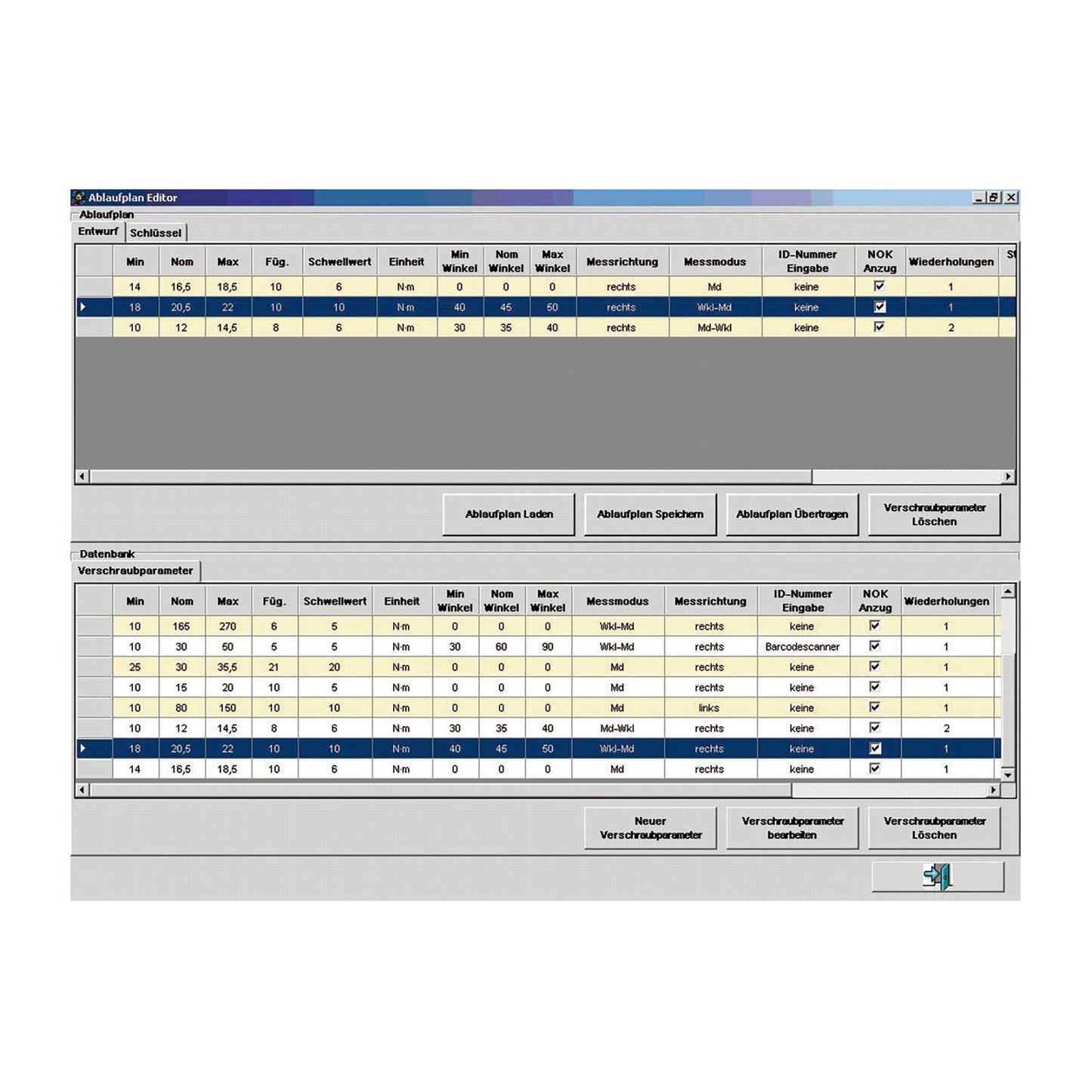

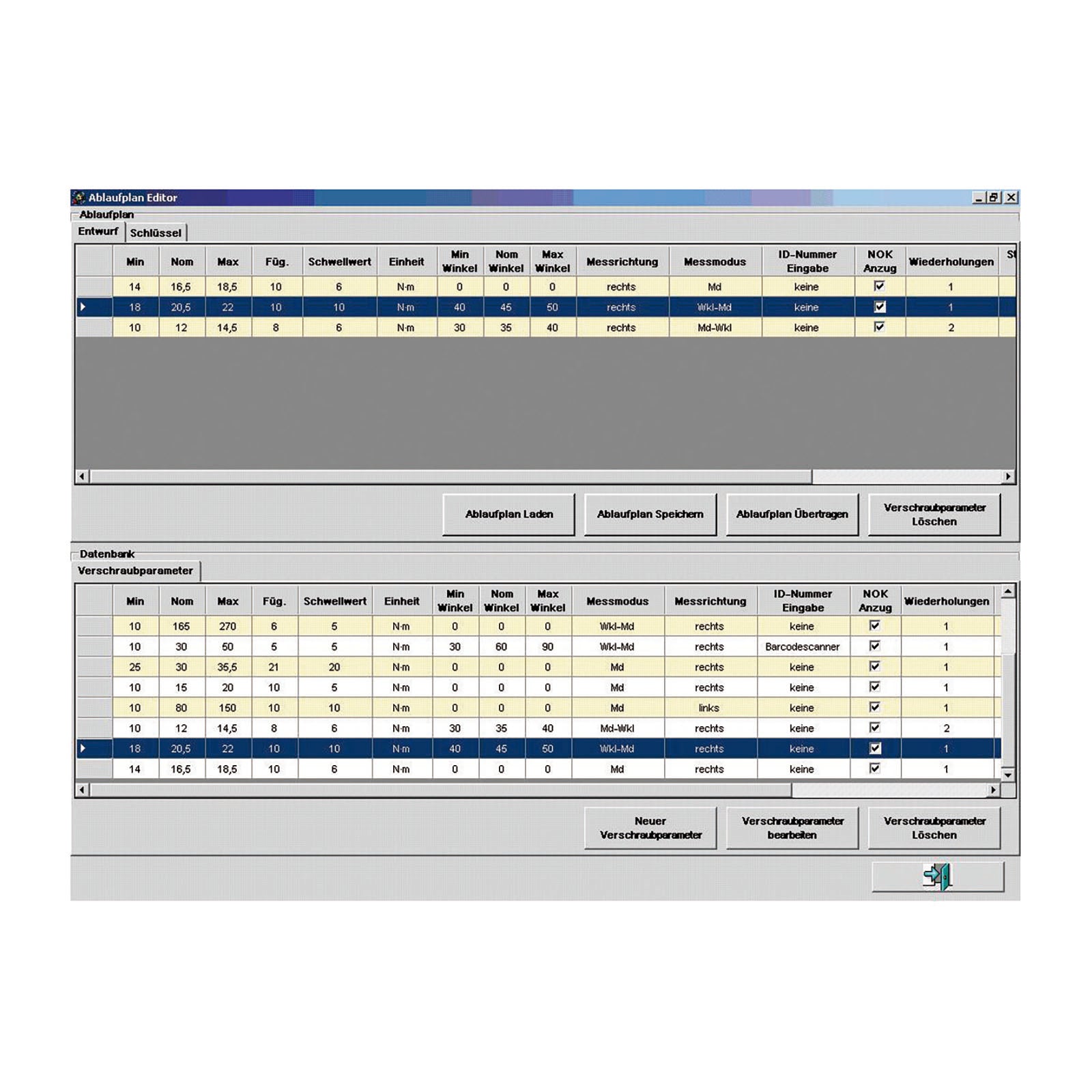

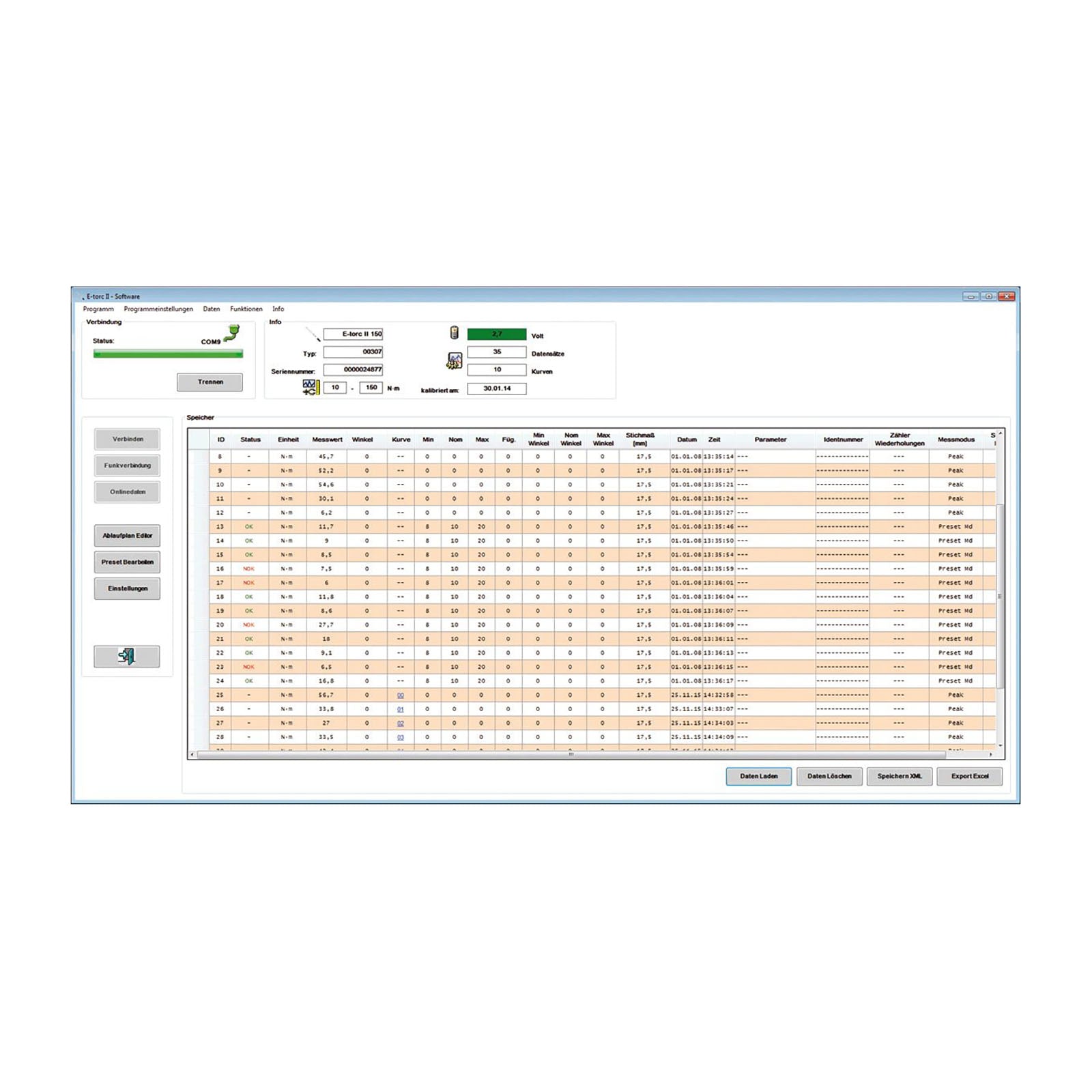

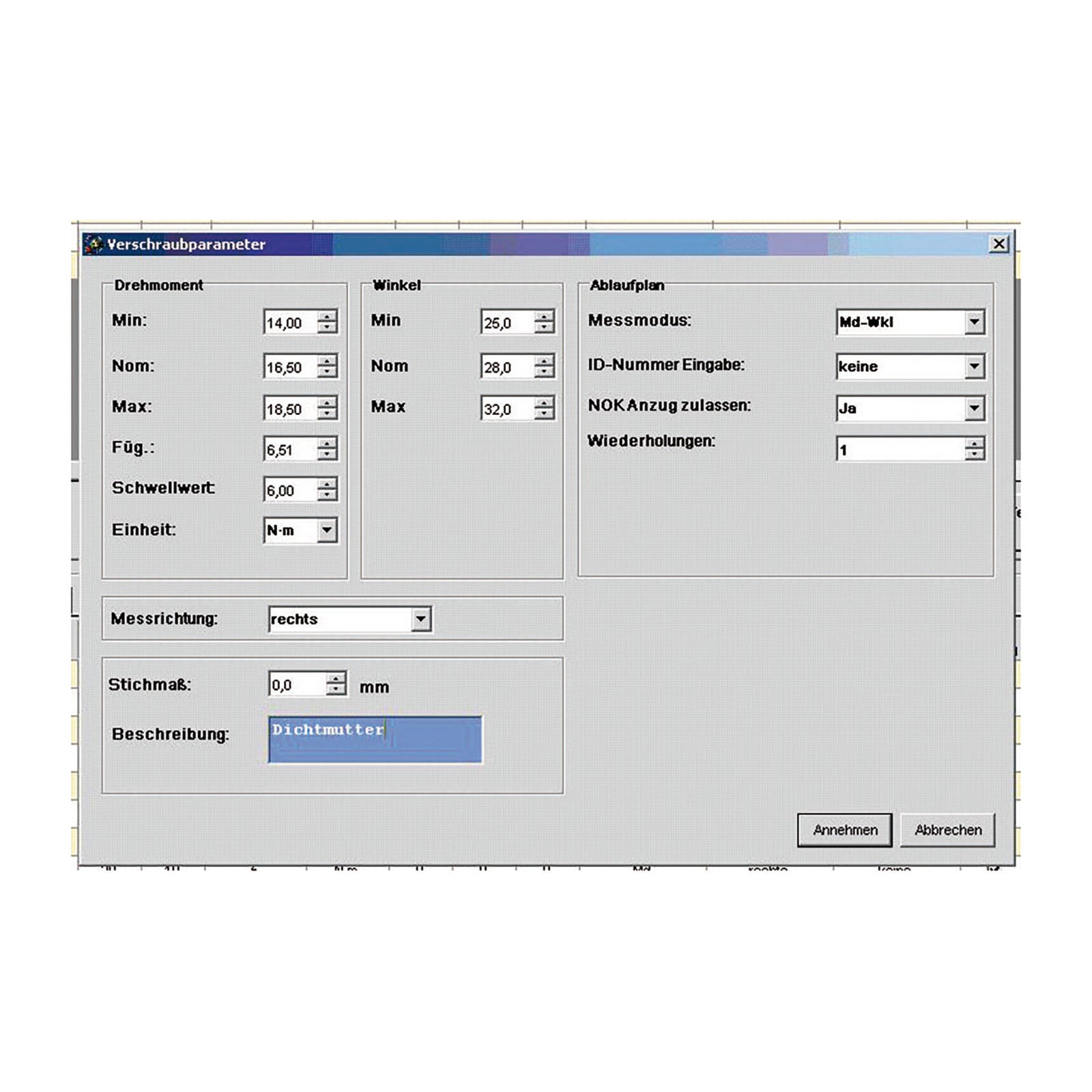

• Graphic analysis possible by software
• Contrast-rich graphic display with illuminated background

Drive:

• 1/4" drive square
• For areas with difficult access and space problems.
• Ask us about special tools.

Lightweight and ergonomic:

• The aluminum housing and the ergonomically designed handle allow for easy and safe handling even with wide clamping ranges.

Function keys:

• Simple handling
• Automatic calibration function
• Ergonomic key arranged laterally
• Switchable from N·ma lbf·ft / lbf·in by software.

Work areas:

• Assembly of small series
• Quality guarantee
• Laboratories and testing departments
• Emergency strategies for screwdriving stations
• Review jobs
• Checking and analysis of screw connections

Model:

• Large working range 2-25 N·m
• 1/4" square drive tool holder
• Signal emission: optical (progress bar LED), acoustic (beep), sensory (vibration)
• Calibration certificate derived from national standards subject to
• Tightening torque reading accuracy +/- 1%, +/- 1 digits of reading value
• Factory certificate according to DIN ISO 6789 Type I class C
• Optional certificate according to DAkkS-DKD-R 3-7
• Calibration of the angle of rotation according to VDI 2648 Sheet 2
• Backlit graphic display
• Introduction of tip gauges for different adapted tools
• Power supply: Battery or accumulator operation

Assessment:

• Reading maximum 2000 data records
• RS232 serial interface for PC (USB adapter supplied)
• Extensive documentation of all screwdriving parameters

Supply:

• E-torc2S/A electronic torque wrench
• Operating instructions with quick guide
• Test certificate according to DIN EN ISO 6789 Type I Class C
• 2 standard Mignon AA batteries
• Evaluation software and RS232 and USB data transmission cable

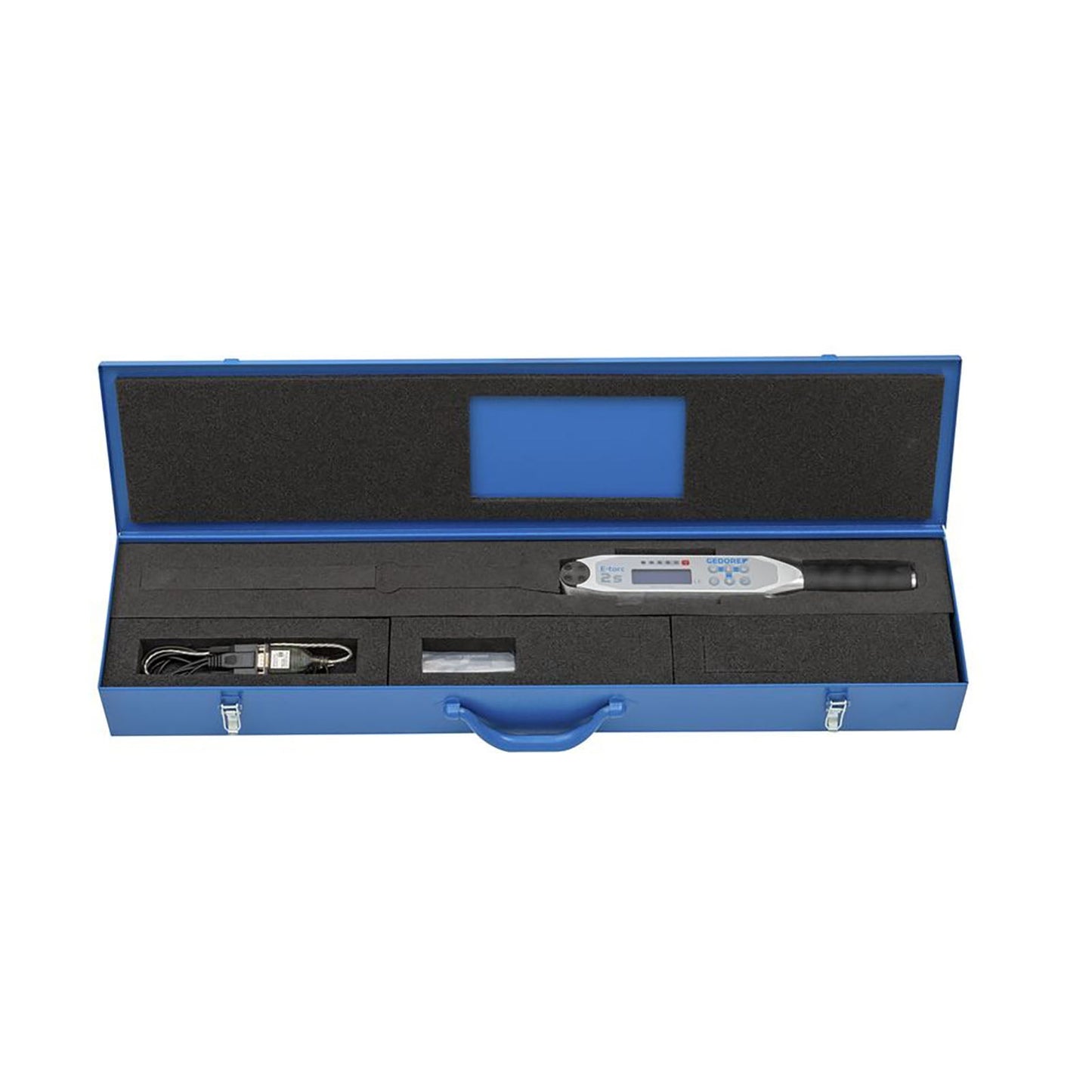

• Supplied in a robust sheet metal case with inserted elements
