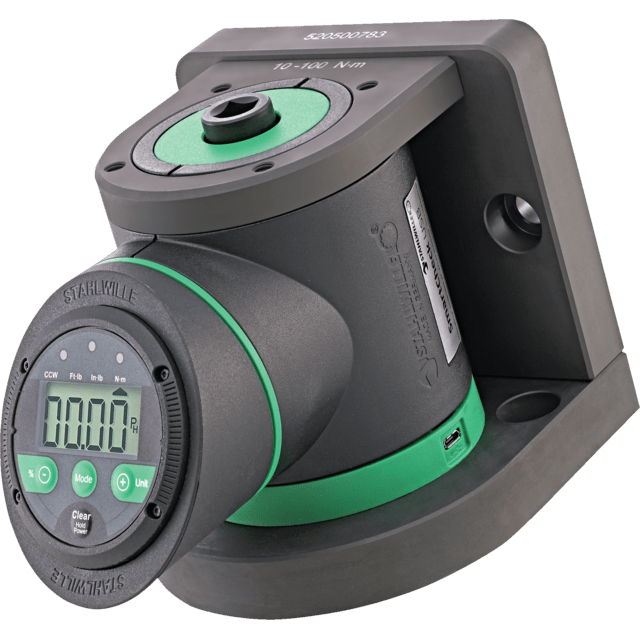

Stahlwille 96521210 - Torque tester for torque wrenches

Electronic device for checking and adjusting torque wrenches, both direct reading and trigger type.

3/4" to 1/2" for SmartCheck 400 USB) Large LCD screen for optimal readability; screen, screen stand and base can be rotated 180°; compact form factor; waterproof foil screen and keypad

Impact-resistant plastic housing; easy installation thanks to pre-drilled holes in the mounting bracket; horizontal or vertical installations; controlled torque checks to the right and left; 3 operating modes: indication of applied torque (Track), indication of torque on trigger/torque point detection (First-Peak), indication of peak value (Peak-Hold); custom input of target torque value and tolerances to evaluate the measured value; integrated visual and acoustic overload protection; 3 units of measurement (N

%

Characteristics

• Simple, fast and reliable torque wrench checks to ensure quality in production.
• Measurement in the wide tightening torque range of 1 to 1,500 Nm.
• Simple documentation of measured values ​​on the computer via the USB interface.
• The large LCD screen can be rotated 180° and is easy to read from any position.
• for testing direct-reading and trigger torque wrenches with square drive adapters (from 3/8" to 1/4" with SmartCheck 100 USB
• m, ft
• lb, in
• lb) Micro USB interface for data export and optional power supply; data storage for up to 200 data records, including date and time; CheckMaster documentation software for transmitting values ​​and creating verification certificates is available free of charge at www.stahlwille.es; operation via included power supply, batteries or rechargeable batteries (4 x AAA or 1 x 9 V, adapter included); with factory calibration certificate; supplied in a robust plastic case; display deviation ± 1
• Model No.: SmartCheck 800 USB
• Measurement range N
• m: 80-800 N
• m
• Measurement range ft
• lb: 59-590 ft
• lb
• Measurement range in
• lb: 708-7081 in
• lb
• Width mm (b): 120 mm
• Height mm (h): 124 mm
• Square bushing [inches]: 3/4"
• t: 167 mm
• Number of digits: 4
• Weight (g): 5690 g
• Weight with box: 7036 g
• Weight in kg: 7.5 kg
