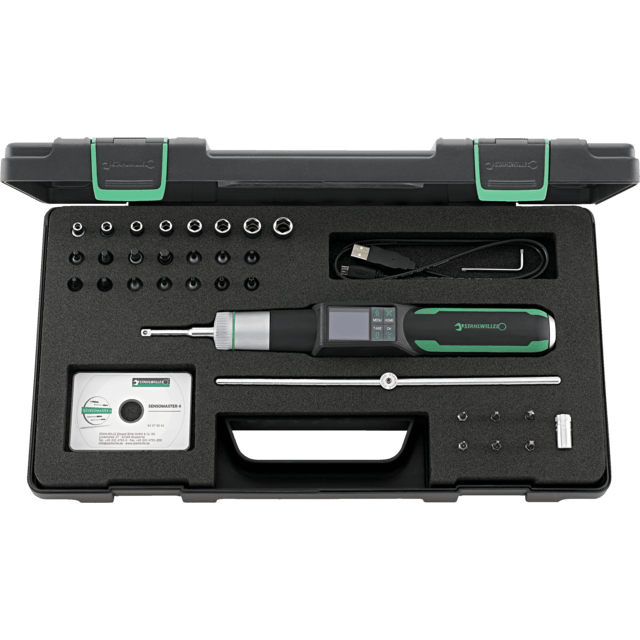

Stahlwille 96510001 - Electronic Torque Screwdriver

Indicator and trigger; integrated 80-tooth bit ratchet for a working angle of only 4.5° and therefore particularly precise work

Characteristics

• Ideal for hard-to-reach bolted joints. After firing, the sliding mechanism prevents accidental over-tightening of the set torque and over-tightening of the screw. Clear display of all relevant information on a bright, battery-saving color OLED screen.
• Readable from virtually any angle; visual assessment of screw tightness using traffic light colors on the screen and LED on the side; multi-language display; long-lasting battery with battery-saving standby mode. The 18650 lithium-ion battery is not included in the scope of delivery. It memorizes up to 2,500 operations and tightening sequences for later reading and documentation on a PC via the integrated micro USB interface. The target tightening torque and tolerances for evaluating the measured value can be individually adjusted. Short familiarization time thanks to almost self-explanatory operating elements and an easy-to-understand menu structure. Three operating modes (Click, Track, Peak Hold). Optical, acoustic, and tactile stop signal. The ergonomically optimized ball grip allows for fatigue-free work and is resistant to oils, greases, fuels, brake fluids, and Skydro. Left and right tightening. With a 1/4" square drive (6.3 DIN 3120/ISO 1174-1) for holding 1/4" sockets. With a 1/4" square drive at the end of the handle (6.3 DIN 3120/ISO 1174-1) for Attaches a 1/4" cross handle. Units of measurement: cN-m, Nm, ft-lb, in-lb, in-oz. Scope of delivery includes: SensoMaster 4 software, USB cable, bit holder, cross handle (size 10). Patented. Certified according to DIN EN ISO 6789-2:2017. In a sturdy plastic case. Indication deviation ± 4%.
• Measurement range N
• m: 1-10 N
• m
• Measurement range ft
• lb: 0.7-7.3 ft
• lb
• Measurement range in
• lb: 8.8-88.5 in
• lb
• Measurement range cN
• m: 100-1000 cN
• m
• Measurement range in-oz: 141-1417 in
• oz
• Length mm (L): 420 mm
• Width mm (b): 227 mm
• Height mm (h): 70 mm
• DIN: DIN 3120 / ISO 1174-1
• Number of tools: 28 pcs.
• Weight (g): 2000 g
• Weight in kg: 2 kg
