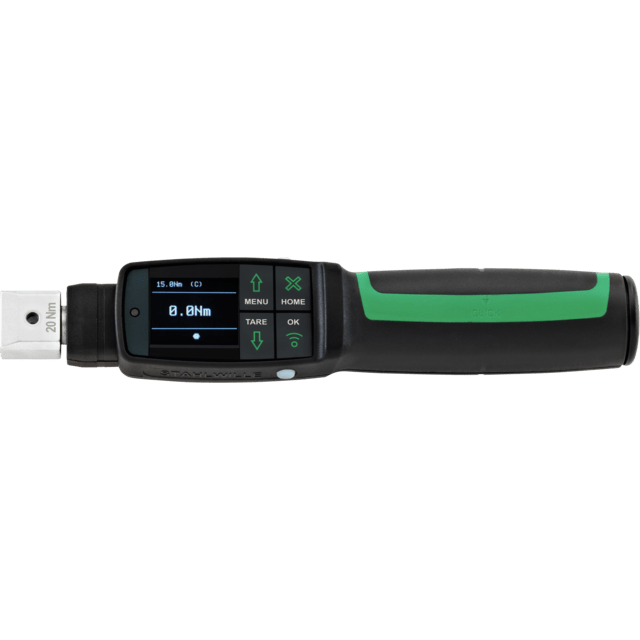

Stahlwille 96500902 - Electromechanical torque wrench 2-20 N·m

4 measurement modes (tightening torque, tightening angle, tightening torque with tightening angle control magnitude, tightening angle with tightening torque control magnitude)

100° at least 1%, ± 1 digit tightening torque resolution ≤ 60 N

>

60 N

>

400

N

N

Characteristics

• Electromechanical direct reading (with electronic measurement) and triggering (with the familiar mechanical "click").
• Visual evaluation of the bolted joint.
• Easy documentation of measurement values ​​on the PC via the USB interface and via an optional Bluetooth Low Energy module.
• Thanks to the combination of the patented electromechanical trigger, direct reading and acoustic response, the key provides a warning with maximum optimization.
• 4 measurement modes (tightening torque, tightening angle, tightening torque with "tightening angle" control, tightening angle with "tightening torque" control) High-resolution color OLED display and side indicator lights Visual evaluation of the bolted joint: yellow light (warning threshold reached), green light (within target range), red light (measurement outside tolerance range) Configurable display structure Quarter-turn locking battery cover Optional: lithium-ion battery no. 7195-2 and charger no. 71603 operating modes: click (patented electromechanical trigger), peak hold (peak value display mode) and tracking (real-time value display mode) Micro USB interface for data communication Optional Bluetooth Low Energy module (5.2) QuickRelease safety lock: insertable tool change system Data storage of up to 2500 Tightening, including date and time; up to 200 threaded connections can be programmed in a maximum of 25 different sequences; adjustable tolerance limits depending on the tightening type; acoustic and visual evaluation of the tightening; quick and precise adjustment via the push-button panel; no unintentional adjustments thanks to the password-protected push-button panel lock; acoustic and visual warning signal in case of overload of the torque wrench and forced firing in clockwise tightening; automatic notification of the next calibration date, configurable by the user according to the elapsed time and/or the number of operations; fully automatic calibration and adjustment with the perfectControl® calibration and adjustment device no. 7794-2 (tightening torque) or 7794-3 (tightening torque and turning angle) to reduce human error; units of measurement: N
• m, ft
• lb, in
• Automatic compensation for inserted tool length: the inserted tool length can be entered to ensure the required target value is correctly achieved by compensating for lever extension. Ready for retightening immediately after releasing the previous screw. Clockwise and counterclockwise tightening: the inserted tool must be turned around to apply the counterclockwise tightening torque in "trigger" mode. Visual, acoustic, and tactile activation signal. Tightening torque and turning angle visible simultaneously. Correct measurement regardless of the force application point (for sizes 1, 2, and 4). Safe handling thanks to the ergonomic two-component handle (resistant to most common oils, greases, fuels, brake fluids, and Skydrol). Three certificates included (direct reading and triggering of tightening torque according to DIN EN ISO 6789-2:2017 and turning angle according to VDI/VDE 2648-2). Robust plastic case (sizes 40-100 in sheet metal case). (steel) registered design, patented with SensoMaster 4 software, USB cable, 4 AAA/LR03 micro batteries, 1.5 V; rotation angle indication resolution 0.1°; rotation angle indication deviation ±1°, ±1 digit up to 100°, >
• m: 0.01 N
• m
• m: 0.1 N
• m
• m: 1
• Torque indication deviation ± 2%, ± 1 digit
• Size: 2
• Tool holder size [inner square]: 9 x 12 mm
• Measurement range N
• m: 2-20 N
• m
• Measurement range ft
• lb: 1.5-15 ft
• lb
• Measurement range in
• lb: 18-180 in
• lb
• Length mm (L): 226 mm
• Width mm (b): 28 mm
• Height mm (h): 23 mm
• Battery type: Micro (AAA) 1.5V
• DIN: DIN EN ISO 6789-2:2017
• LF: 188 mm
• SF: 17.5 mm
• Weight (g): 380 g
• Weight with box: 805 g
• Weight in kg: 1.03 kg
