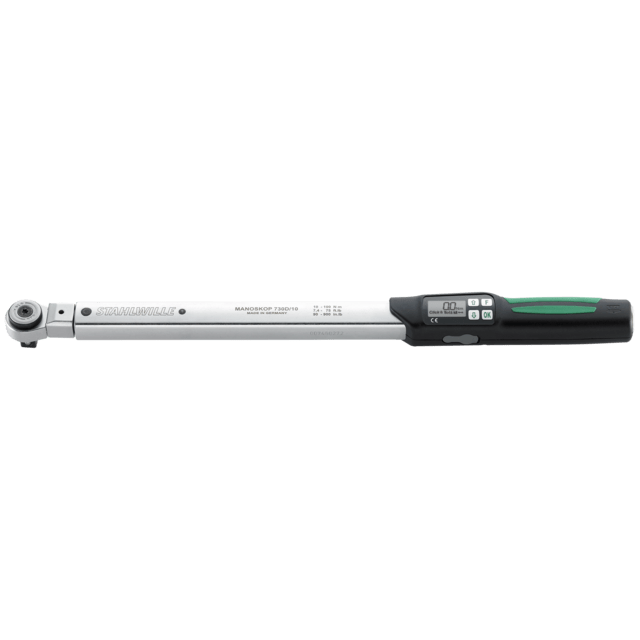

Stahlwille 96501810 - Electromechanical Torque Wrench

Perceptible and audible trigger signal. Socket for interchangeable tools. Quick Release. Safety lock; quick adjustment via practical keypad; automatic torque correction after entering an incorrect stitch size; overload protection via audible and visual warning signals; no unintentional adjustment thanks to automatic key lock; display function also for counterclockwise tightening torques; measuring units: Nm, ft-lb, in-lb; different tolerance limits can be set depending on the tightening situation; visual evaluation of the tightening situation via green and red display indication; additional security of presets (function mode, trigger or nominal value, measuring unit, tolerance value, storage, deviation gauge) via PIN code; storage of up to 7,500 tightening data points; USB interface; automatic indication of the next calibration date; calibration with perfectControl® calibration device no. 7794 or calibration system no. 7706; 2-component handle with comfortable green soft grip (resistant to oils, greases, fuels, brake fluids) and Skydrol)Certified according to DIN EN ISO 6789-2:2017In a sturdy plastic case (size 40-100 in a steel sheet case)PatentedSupplied with 2 x 1.5V Mignon batteries. Rechargeable Mignon NiMH AA/LR6, 1.2V batteries can be used.Display deviation ± 2%, ± 1 digit.

Characteristics

• Size: 10
• Tool holder size [inner square]: 9 x 12 mm
• Measurement range N
• m: 10-100 N
• m
• Measurement range ft
• lb: 7.4-75 ft
• lb
• Measurement range in
• lb: 90-900 in
• lb
• MAN
• m: 10 N
• m
• Nominal value N
• m: 100 N
• m
• Outside outlet square (inch): 1/2
• Length mm (L): 501 mm
• Width mm (b): 95 mm
• Height mm (h): 74 mm
• Number of teeth: 60
• Battery type: Mignon (AA) 1.5V
• DIN: DIN EN ISO 6789-2:2017
• N adjustment indicator resolution
• m: 0.2/0.1 N
• m
• ft adjustment indicator resolution
• lb: 0.2/0.1 ft
• lb
• Adjusting the indicator resolution in
• lb: 2/1.0 in
• lb
• Weight (g): 1232 g
• Weight with box: 1657 g
• Weight in kg: 1.99 kg
