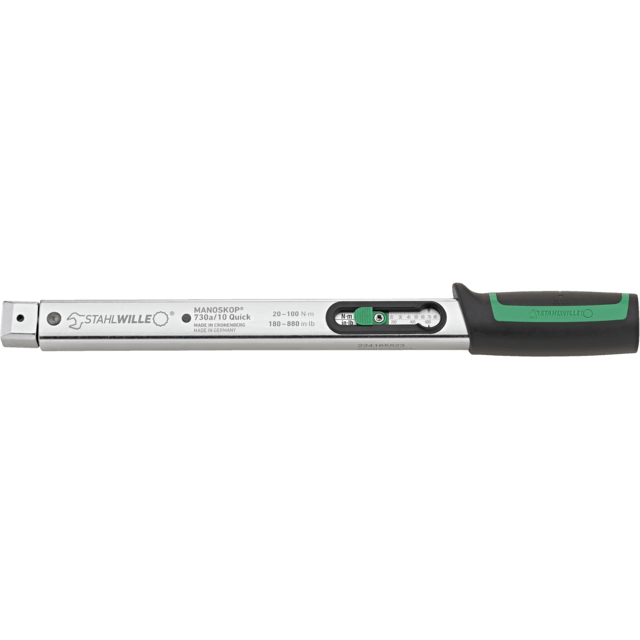

Stahlwille 50584010 - MANOSKOP 730a Quick torque wrench 20-100N·m 9 x 12 mm L. 370mm

with shot

Characteristics

• Triggering. No need to reset to "0", as the measuring element is only charged during tightening. Socket box for interchangeable tools. Quick Release safety lock (Gr. 5-65). Quick adjustment via easy-to-use tightening lever on the handle (Gr. 5-65). Ergonomically shaped, non-slip adjusting element with thumb recess. Optimized ball handle for fatigue-free work. Double stop signal. Dual scale Nm/ft-lb or Nm/in-lb (Gr. 5-80). Also available on request as a non-dual scale Nm version (size 5-65). Tighten counterclockwise by turning the plug-in tools. Continued charging after release or counter-charging, e.g. With stuck screws, they do not act on the unlocking mechanism, which is thus protected from damage. Calibration with the perfectControl® calibration device no. 7794 or the calibration system no. 7706. If necessary, readjustment without disassembly. Certified according to DIN EN ISO 6789-2:2017. Indication deviation ±4%.
• Size: a/10
• Tool holder size [inner square]: 9 x 12 mm
• Measurement range N
• m: 20-100 N
• m
• Measurement range in
• lb: 180-880 in
• lb
• N scale division
• m: 2.5 N
• m
• Scale division in
• lb: 20 in
• lb
• Length mm (L): 370 mm
• Width mm (b): 28 mm
• Height mm (h): 23 mm
• DIN: DIN EN ISO 6789-2:2017
• LF: 343 mm
• SF: 17.5 mm
• Weight (g): 934 g
• Weight in kg: 0.93 kg
