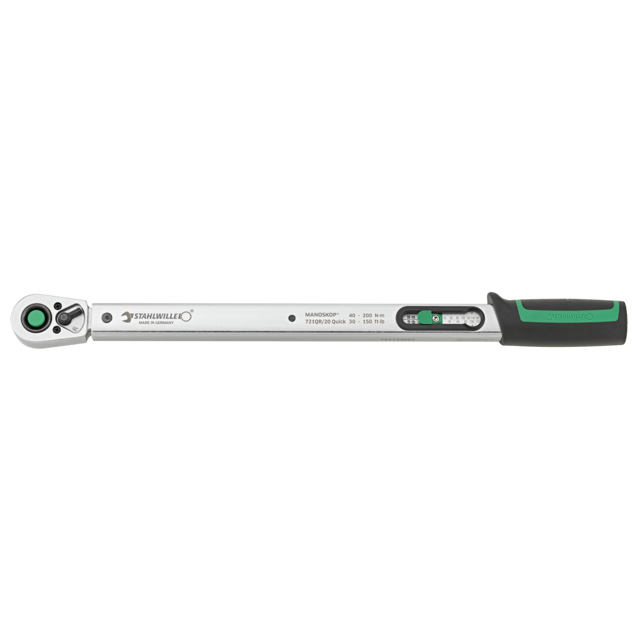

Stahlwille 50204120 - 721QR Quick Torque Wrench 40-200N·m 1/2" L. 482mm

Immediate adjustment thanks to an easy-to-use clamping lever on the handle; integrated magnifying glass for better readability of the adjusted value

Characteristics

• Effective. There is no need to reset to "0", as the measuring element is only subjected to stress during the tightening process.
• Ergonomic, non-slip adjustment element with thumb cavity and optimized ball handle for fatigue-free work
• Fixed construction 1/2" QuickRelease ratcheting torque wrench, dual stop signal (sensible and audible), left-hand tightening by reversing insertion tools
• With calibration certificate, display deviation of ± 4%
• MANOSKOP® 721 Standard Trigger Zeroing Dual stop signal Dual scale Nm/ft-lb No zeroing required, as the measuring element is only loaded during tightening. Continued loading after triggering or loads in the opposite direction to the operating function, e.g., with stuck bolts, do not affect the triggering mechanism, which is thus protected from damage. Protection of all sensitive parts by the robust tubular steel housing. Calibration with the perfectControl calibration device no. 7794 or calibration system no. 7706. If necessary, readjustment without disassembly. Indication deviation ± 4% With certificate
• Size: 20
• Measurement range N
• m: 40-200 N
• m
• Measurement range ft
• lb: 30-145 ft
• lb
• MAN
• m: 40 N
• m
• Nominal value N
• m: 200 N
• m
• N scale division
• m: 5 N
• m
• ft scale division
• lb: 5 ft
• lb
• Outside outlet square (inch): 1/2
• Length mm (L): 482 mm
• b1: 28 mm
• b2: 41 mm
• Height mm (h1): 23 mm
• Height mm (h2): 18 mm
• DIN: DIN EN ISO 6789-2:2017
• LF: 416.5 mm
• Weight (g): 1338 g
• Weight in kg: 1.34 kg
