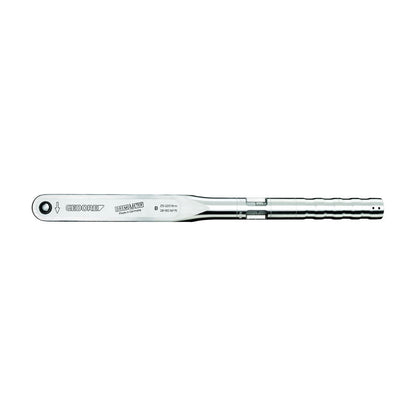

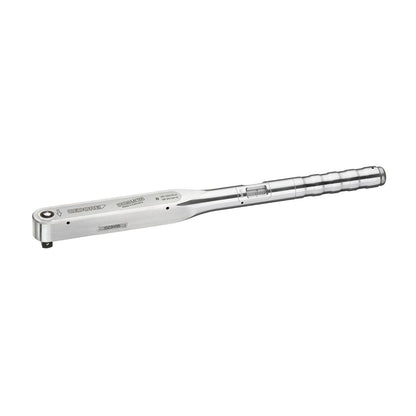

GEDORE 8561-01 - Dremometer B Torque Wrench with 1/2" Square Drive and Range: 25-120 Nm

• Controlled screw tightening in the range of 25-120 N·m / 18-90 lbf·ft
• Application in all areas of industrial manufacturing

Execution:

• Classified according to DIN EN ISO 6789:2003 Type II Class A with a factory certificate.
• Triggering accuracy: +/- 3% on the adjusted value on the scale, thus exceeding the prescription of the standard (+/- 4%).

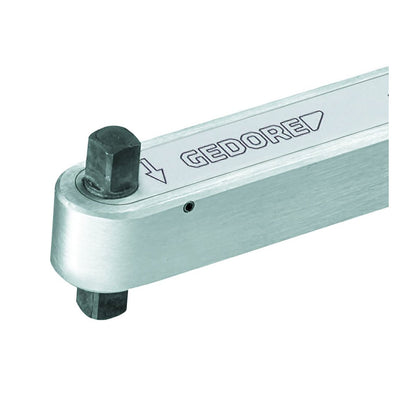

• 1/2" drive square with safety ball DIN 3120 - A 12.5 ISO 1174
• Automatic short-travel trigger signal, perceptible and audible
• Dual scale with a scale divider of 5 N·m and 5 lbf·ft
• With unlock button. Advantage/technical function:
• Lightweight and robust (since the casing is made of an aluminum alloy), very suitable for workshops
• There are no shifts in values or impact on accuracy due to working with both hands or operating outside the handle (as occurs in traditional torque wrenches).
• Both the drive square and the center of rotation are on one axis, which increases the safety of use, extendable to reduce the user's workload.
• Extremely reduced wear thanks to the reduction of forces in a unique lever mechanism
• Lever chain forged from the Group's own quality forge
• Maximum precision even with intensive continuous use
• Long lifespan and extended service life
• Easy handling - faster and safer torque tightening
• Comfortable fit thanks to a beautifully shaped, secure readjustment button located at the end of the handle
• Single and double square drive for controlled tightening to the left and right
