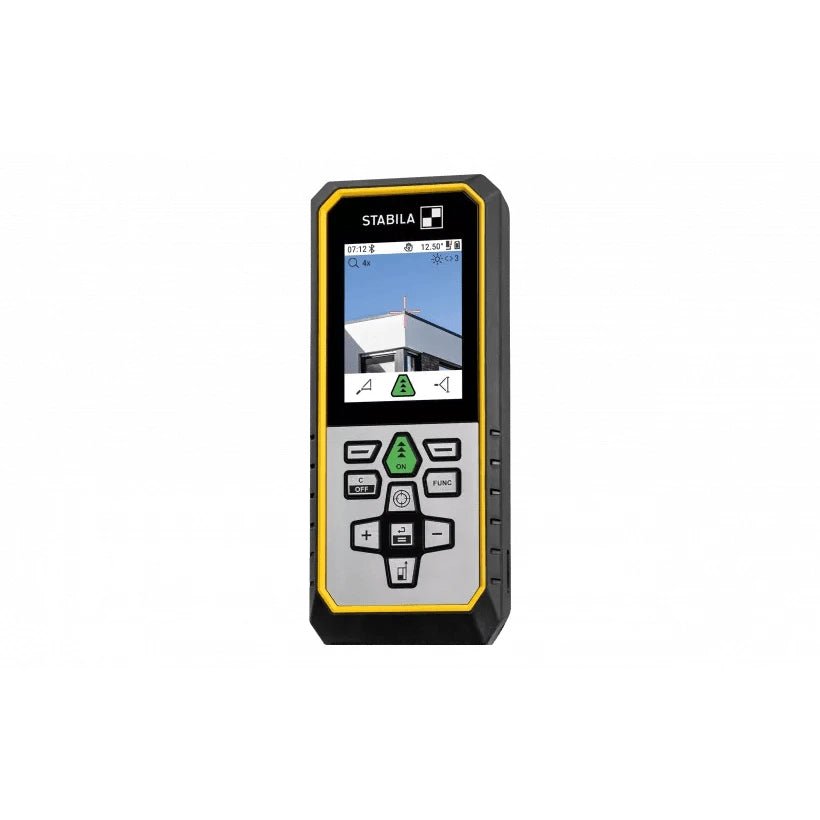

Stabila 20123 - LD 530 BT Laser Distance Meter, Bluetooth 5.0

PRECISE. VERSATILE. DIGITAL. HIGH-TECH DISTANCE MEASUREMENT FOR INDOOR AND OUTDOOR USE.

Experience the future of distance measurement! With the high-resolution camera, digital targeting, and 4x zoom, you'll achieve accurate results, even in bright sunlight and at long distances. Innovative gesture control allows for precise measurements without touching the laser. Seventeen measurement functions make any measuring task a breeze. Modern Bluetooth® 5.0 technology transfers your measurement data directly to apps or Excel files and enables automatic plan creation with the SMART SKETCH function of the STABILA Measures II App. Efficient work – typical of STABILA!

HIGHLIGHTS

• High-resolution camera with target location and 4x zoom.
• Exact location indoors and outdoors up to 200 m.
• Innovative gesture control for maximum measurement accuracy.
• Direct digital transfer of measurement values ​​to apps or Excel files.
• Real-time plans with the SMART SKETCH function.

DESCRIPTION

• Laser for precise measurements up to 200 m indoors and outdoors.
• The high-resolution camera with a backlit 2.4" color display provides a clear image, even in bright light.
• Digital target location with 4x zoom for accurate location at long distances.
• Bluetooth® 5.0 for fast transmission of measurement data to smartphone, tablet or PC.
• The free STABILA Measures II App with SMART SKETCH function automatically creates floor plans of spaces.
• Direct transmission of measurement values ​​to individual templates, e.g. to Excel.
• GESTURE CONTROL: Contactless activation of measurement – ​​maximum measurement accuracy over long distances.
• Extensive function package with 17 functions: area, volume, tilt, height measurement and indirect distance, etc.
• Certified to ISO 16331-1: range 0.05-200 m, accuracy ± 1.0 mm.
• Housing with Softgrip coating, 1/4" thread, IP 54 protection rating.
• Powerful lithium-ion battery for up to 5000 measurements.
• Belt holster included, hand strap and USB-C to USB-A charging cable.

TECHNICAL DATA

• Laser category: 2
• Power: 1 mW
• Accuracy ±1 mm
• Minimum range 0.05 m
• Max. range 200 m
• Autonomy (number of measurements) 5000
• Saving option: Yes
• With data transfer: Yes
• Tilt sensor ±180°
• Digital target locator: Yes
• Tripod connection: 1/4"
• Functions: 17
• Protection rating: IP 54

SUPPLY VOLUME

LD 530 BT Laser Distance Meter with integrated battery, belt holster, hand strap, and USB-C to USB-A charging cable

Instruction manual

Product brochure

Warranty
