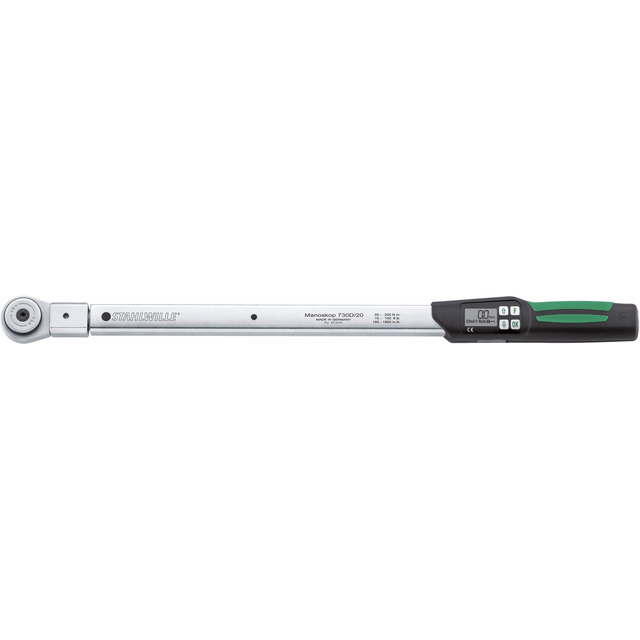

Stahlwille 96501840 - Electromechanical Torque Wrench

A gunshot signal that can be felt and heard

Characteristics

• Perceptible and audible trigger signal. Socket for interchangeable tools. Quick Release. Safety lock; quick adjustment via practical keypad; automatic torque correction after entering an incorrect stitch size; overload protection via audible and visual warning signals; no unintentional adjustment thanks to automatic key lock; display function also for counterclockwise tightening torques; measuring units: Nm, ft-lb, in-lb; different tolerance limits can be set depending on the tightening situation; visual evaluation of the tightening situation via green and red display indication; additional security of presets (function mode, trigger or nominal value, measuring unit, tolerance value, storage, deviation gauge) via PIN code; storage of up to 7,500 tightening data points; USB interface; automatic indication of the next calibration date; calibration with perfectControl® calibration device no. 7794 or calibration system no. 7706; 2-component handle with comfortable green soft grip (resistant to oils, greases, fuels, brake fluids) and Skydrol)Certified according to DIN EN ISO 6789-2:2017In a sturdy plastic case (size 40-100 in a steel sheet case)PatentedSupplied with 2 x 1.5V Mignon batteries. Rechargeable Mignon NiMH AA/LR6, 1.2V batteries can be used.Display deviation ± 2%, ± 1 digit.
• Size: 40
• Tool holder size [inner square]: 14 x 18 mm
• Measurement range N
• m: 40-400 N
• m
• Measurement range ft
• lb: 30-300 ft
• lb
• Measurement range in
• lb: 360-3600 in
• lb
• MAN
• m: 40 N
• m
• Nominal value N
• m: 400 N
• m
• Outside outlet square (inch): 3/4
• Square drive outside (in.):
• Length mm (L): 738 mm
• Width mm (b): 83 mm
• Height mm (h): 70 mm
• Number of teeth: 60
• Outside square [inches]: 3/4"
• Battery type: Mignon (AA) 1.5V
• DIN: DIN EN ISO 6789-2:2017
• N adjustment indicator resolution
• m: 1.0/0.1 N
• m
• ft adjustment indicator resolution
• lb: 1.0/0.1 ft
• lb
• Adjusting the indicator resolution in
• lb: 10/1.0 in
• lb
• Weight (g): 2232 g
• Weight with box: 4722 g
• Weight in kg: 5 kg
