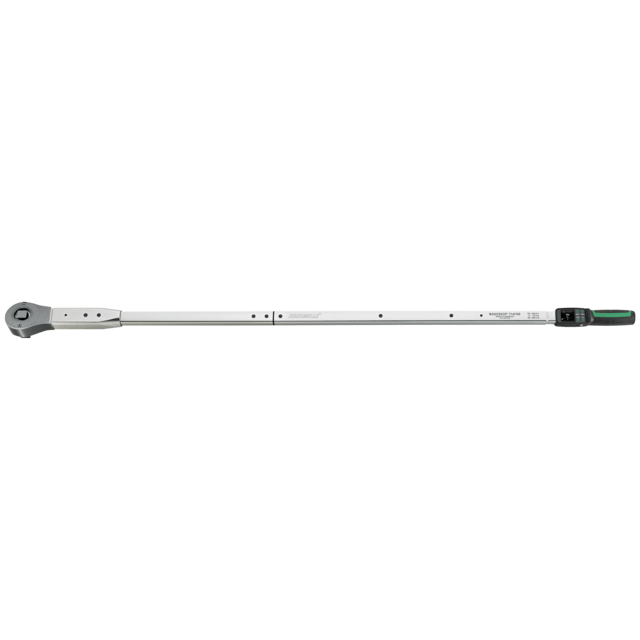

Stahlwille 96501100 - Electromechanical Torque Wrench 100-1000 N

Torque and angle wrench for bolted joints with torque warning, tightening angle warning, torque warning with angle control and tightening angle warning with torque control.

To tighten counterclockwise in "trigger" mode, the inserted tool must be turned over (sizes 80-100) Visual, acoustic and tactile activation signal Tightening torque and turning angle visible at the same time Correct measurement regardless of the point of force application (for sizes 1, 2 and 4) Safe handling thanks to the ergonomic two-component handle (resistant

to the most common oils, greases, fuels, brake fluids and Skydrol)3 certificates included (direct reading and triggering of tightening torque according to DIN EN ISO 6789-2:2017 and turning angle according to VDI/VDE 2648-2)in robust plastic case (sizes 40-100 in sheet steel case)registered, patented designwith SensoMaster 4 software, USB cable, 4 AAA/LR03 micro batteries, 1.5 Vturning angle indication resolution 0.1°turning angle indication deviation ±1°, ±1 digit up to 100°, >

100° at least 1%, ± 1 digit tightening torque resolution ≤ 60 N

>

60 N

Characteristics

• Electromechanical direct reading (with electronic measurement) and triggering (with the familiar mechanical "click").
• Visual evaluation of the bolted joint.
• Simple documentation of measurement values ​​on the PC via the USB interface and via an optional Bluetooth Low Energy module.
• Thanks to the combination of the patented electromechanical trigger, direct reading and acoustic response, the key provides a warning with maximum optimization.
• with reversible ratchet (size 1-4), fine-tooth reversible ratchet (size 6-65) or through-square ratchet adapter (size 80-100) 4 measuring modes (tightening torque, tightening angle, tightening torque with "tightening angle" control, tightening angle with "tightening torque" control) high-resolution color OLED display and side indicator lights visual evaluation of the bolted joint: yellow light (warning threshold reached), green light (within target range), red light (measurement outside tolerance range) configurable display structure quarter-turn locking battery cover optionally: lithium-ion battery no. 7195-2 and charger no. 7160 3 operating modes: click (patented electromechanical trigger), peak hold (peak display mode) and tracking (peak display mode real-time) micro USB interface for data communication; optional Bluetooth Low Energy (5.2) module; QuickRelease safety lock: insertable tool change system; data storage for up to 2500 tightening operations, including date and time; up to 200 threaded connections can be programmed in a maximum of 25 sequences; different adjustable tolerance limits depending on the tightening type; acoustic and visual evaluation of the tightening; quick and precise adjustment via the push-button panel; no unintentional adjustments thanks to the password-protected push-button panel lock; acoustic and visual warning signal in case of torque wrench overload and forced triggering in clockwise tightening; automatic notification of the next calibration date, configurable by the user according to the elapsed time and/or the number of operations; fully automatic calibration and adjustment with the perfectControl® calibration and adjustment device no. 7794-2 (tightening torque) or 7794-3 (tightening torque and angle) (rotation) to reduce human error. Units of measurement: N
• m, ft
• lb, in
• Automatic compensation of inserted tool length: possibility of entering the length of the inserted tool to ensure that the required target value is correctly reached by compensating for the lever extension; ready for a new tightening immediately after releasing the previous screw; for controlled clockwise and counterclockwise tightening (sizes 1-65)
• m: 0.01 N
• m
• m: 0.1 N
• Torque indication deviation ± 2%, ± 1 digit
• Size: 100
• Tool holder size [inner square]: 22 x 28 mm
• Measurement range N
• m: 100-1000 N
• m
• Measurement range ft
• lb: 73-735 ft
• lb
• Measurement range in
• lb: 885-8850 in
• lb
• Outside outlet square (inch): 3/4
• Length mm (L): 1438 mm
• Width mm (b): 130 mm
• Height mm (h): 100 mm
• Number of teeth: 30
• Battery type: Micro (AAA) 1.5V
• DIN: DIN EN ISO 6789-2:2017
• Weight (g): 6905 g
• Weight with box: 12500 g
• Weight in kg: 12.5 kg
