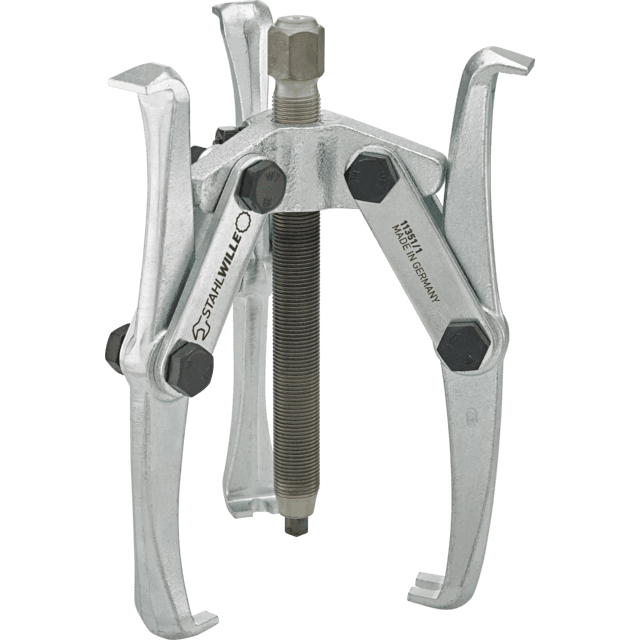

Stahlwille 71035102 - Three-arm extractor 220 x 170 mm

Stahlwille 71035102 - Three-arm extractor 220 x 170 mm

Regular price €292,25
Regular price Sale price €292,25
Sale Sold out
Taxes included. Shipping calculated at checkout.

Low stock: 1 left

Quantity

For the quick and safe disassembly of gears, ball bearings, pulleys and for the extraction of outer rings of ball bearings and bushings of drill sets.

Characteristics

  • The ends of the arms have a narrow and wide design, so they can be used on either side.
  • Automatic pressure of the arms under load makes application easier.
  • Excellent resistance to bending thanks to the legs with precision-made profiles and smooth, milled guides.
  • The nitrided surface of the spindle allows for effortless movement, so no additional lubrication is required.
  • 3-arm puller with self-centering puller arms for gears, ball bearings, pulleys and similar parts from a shaft or axle. Use of puller hooks on both sides: narrow arm end (20 mm) for tight mounting spaces, wide arm end (24 mm) with slot (8 mm) for removing washers or sprockets with the aid of 8 mm screws. Nitrided spindle, lubrication-free, maintenance-free.
  • Size: 2
  • External drive hexagon (mm): 19 mm
  • Number of hooks: 3
  • Max. load: 7.5 t
  • Clamping depth mm: 170 mm
  • Clamping width mm: 220 mm
  • Spindle thread size: M18 x 1.5 x 170
  • Hook foot width mm (b): 24 mm
  • Hook foot depth mm (c): 12 mm
  • Hook tip thickness mm (a): 3 mm
  • Weight (g): 3200 g
  • Weight in kg: 3.02 kg
