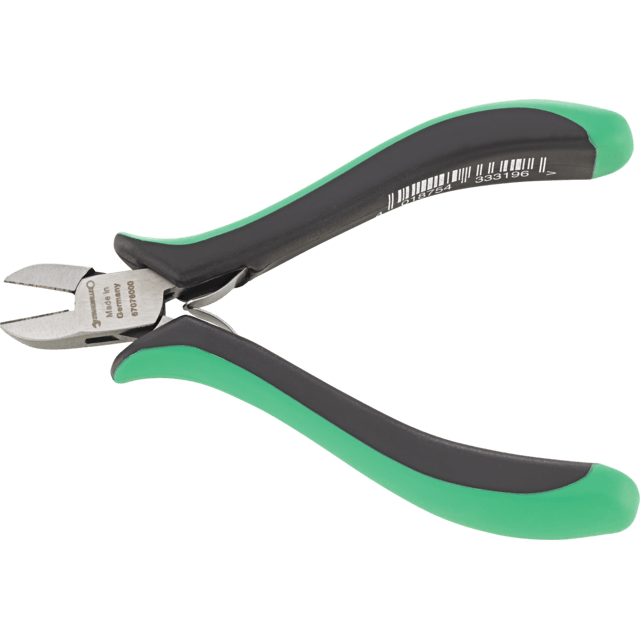

Stahlwille 67076000 - Side cutting pliers for electronics L.115 mm

with two-component handles

Characteristics

• The sharp, hardened cutting edges provide equally accurate results with both hard and soft wire.
• It opens automatically and is easy to use thanks to the integrated double spring for smooth and precise movements.
• The fully inserted, backlash-free joint offers maximum precision with a long service life.
• The frictionless, self-opening double-leaf spring allows for smooth and precise movement of the jaws.
• For demanding work in electronics/precision mechanics; slim head design for use in confined work areas; outstanding cutting performance: Ø 0.6 mm for hard wire and Ø 1.5 mm for soft wire; long service life, backlash-free, thrust joint with double-leaf spring for smooth movement; wider handle cover for improved slip resistance; ergonomic thumb rest for optimal handling; induction-hardened cutting edges to approx. 62 HRC; with 2-component shanks; DIN ISO 9654
• Length mm (L): 115 mm
• Width mm (b): 56 mm
• Soft wire (1): 1.5 mm
• Semi-hard wire (2): 1 mm
• Hard wire (3): 0.8 mm
• Piano wire (4): 0.6 mm
• Head: polishing
• Handles: 2-component handles
• Head width-electronics-mm (a): 12 mm
• Electronic head thickness (d): 8 mm
• DIN: DIN ISO 9654
• Head length-electronics-mm (b): 14 mm
• Weight (g): 72 g
• Weight in kg: 0.07 kg
