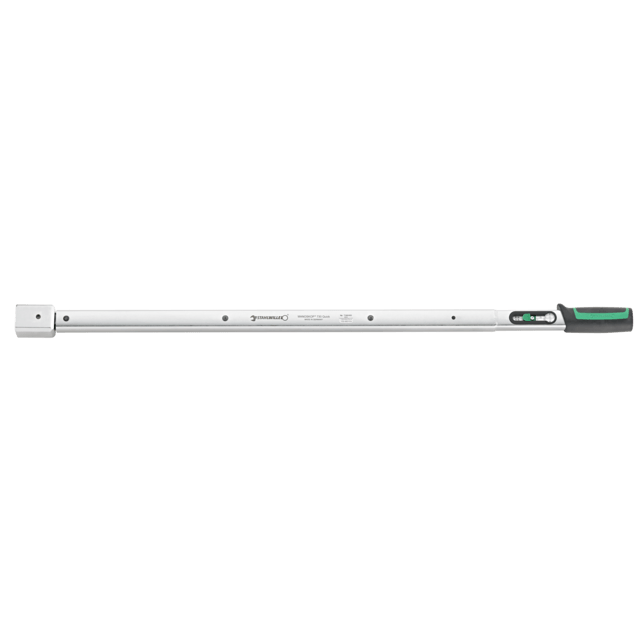

Stahlwille 50184565 - MANOSKOP 730 Quick torque wrench 130-650N·m 22 x 28 mm L. 897mm

with shot

Characteristics

• Triggering. No need to reset to "0", as the measuring element is only charged during tightening. Socket box for interchangeable tools. Quick Release safety lock (Gr. 5-65). Quick adjustment via easy-to-use tightening lever on the handle (Gr. 5-65). Ergonomically shaped, non-slip adjusting element with thumb recess. Optimized ball handle for fatigue-free work. Double stop signal. Dual scale Nm/ft-lb or Nm/in-lb (Gr. 5-80). Also available on request as a non-dual scale Nm version (size 5-65). Tighten counterclockwise by turning the plug-in tools. Continued loading after release or loading in the opposite direction, e.g. With stuck screws, they do not act on the unlocking mechanism, which is thus protected from damage. Calibration with the perfectControl® calibration device no. 7794 or the calibration system no. 7706. If necessary, readjustment without disassembly. Certified according to DIN EN ISO 6789-2:2017. Indication deviation ±4%.
• Tam.: II/65
• Tool holder size [inner square]: 22 x 28 mm
• Measurement range N
• m: 130-650 N
• m
• Measurement range ft
• lb: 100-480 ft
• lb
• N scale division
• m: 20 N
• m
• ft scale division
• lb: 20 ft
• lb
• Length mm (L): 897 mm
• Width mm (b): 30.6 mm
• Height mm (h): 25.6 mm
• DIN: DIN EN ISO 6789-2:2017
• LF: 907 mm
• SF: 55 mm
• Weight (g): 4104 g
• Weight in kg: 4.1 kg
