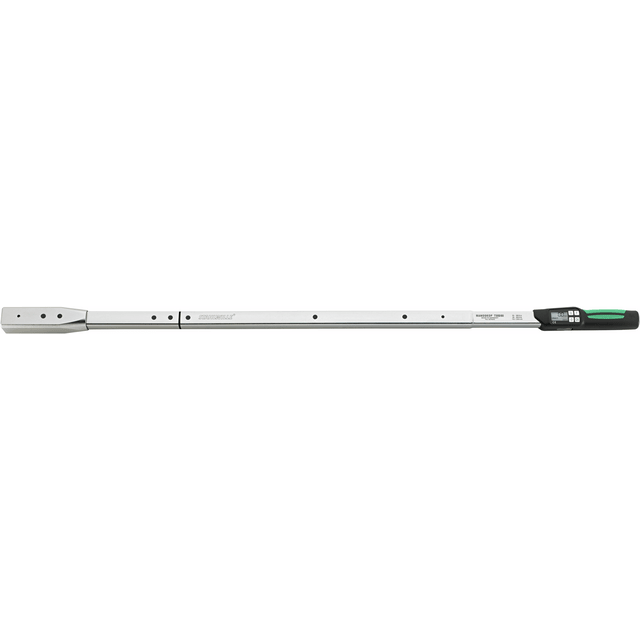

Stahlwille 96502080 - Electromechanical Torque Wrench

A gunshot signal that can be felt and heard

Characteristics

• Perceptible and audible trigger signal. Socket for interchangeable plug-in tools. Quick Release. Safety lock; quick adjustment via practical keypad; automatic torque correction after entering an incorrect stitch size; overload protection via audible and visual warning signals; no unintentional adjustment thanks to automatic key lock; display function also for counterclockwise tightening torques; measuring units: Nm, ft-lb, in-lb; different tolerance limits can be set depending on the tightening situation; visual evaluation of the tightening situation via green and red display indication; additional security of presets (function mode, trigger or nominal value, measuring unit, tolerance value, storage, deviation gauge) via PIN code; storage of up to 7,500 tightening data points; USB interface; automatic indication of the next calibration date; calibration with perfectControl® calibration device no. 7794 or calibration system no. 7706; 2-component handle with comfortable green soft grip (resistant to oils, greases, fuels, brake fluids) and Skydrol)Certified according to DIN EN ISO 6789-2:2017In a sturdy plastic case (size 40-100 in a steel sheet case)PatentedSupplied with 2 x 1.5V Mignon batteries. Rechargeable Mignon NiMH AA/LR6, 1.2V batteries can be used.Display deviation ± 2%, ± 1 digit.
• Size: 80
• Tool holder size [inner square]: 22 x 28 mm
• Measurement range N
• m: 80-800 N
• m
• Measurement range ft
• lb: 60-600 ft
• lb
• Measurement range in
• lb: 720-7200 in
• lb
• MAN
• m: 80 N
• m
• Nominal value N
• m: 800 N
• m
• Length mm (L): 1160 mm
• Width mm (b): 30.6 mm
• Height mm (h): 25.6 mm
• Battery type: Mignon (AA) 1.5V
• DIN: DIN EN ISO 6789-2:2017
• N adjustment indicator resolution
• m: 1.0/1.0 N
• m
• ft adjustment indicator resolution
• lb: 1.0/1.0 ft
• lb
• Adjusting the indicator resolution in
• lb: 10/1.0 in
• lb
• LF: 1157 mm
• SF: 55 mm
• Weight (g): 4577 g
• Weight with box: 10500 g
• Weight in kg: 10.5 kg
