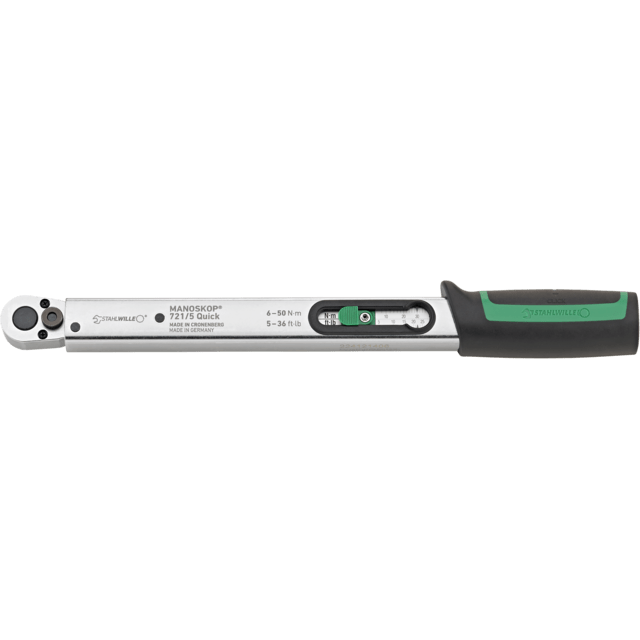

Stahlwille 50204005 - 721 Quick torque wrench 6-50N·m 3/8" L. 352mm

Stahlwille 50204005 - 721 Quick torque wrench 6-50N·m 3/8" L. 352mm

Characteristics

• Made in Germany: STAHLWILLE torque wrench with trigger mode, through-square ratchet, 352 mm length, with calibration certificate (DIN EN ISO 6789-2:2017), 50204005
• Patented, low-wear firing system with flex bar
• Quick and precise tightening torque adjustment
• An additional load after activation or a load opposite to the direction of operation will not damage the torque wrench.
• Triggering. No need to reset to "0", as the measuring element is only charged during tightening. Quick adjustment via easy-to-use tightening lever on the handle. Ergonomic shape, ergonomically shaped and non-slip adjustment element with thumb notch. Ball handle optimized for fatigue-free work. Dual stop signal. Dual scale Nm/ft-lb. Continued loading after release or loading in the opposite direction to the operating function, e.g., in the case of stuck screws. With stuck screws, the release mechanism is not affected, thus protecting it from damage. Protection of all sensitive parts by the robust tubular steel housing. Calibration with perfectControl® calibration device no. 7794 or calibration device no. 7706. If necessary, readjustment without disassembly. Certified according to DIN EN ISO 6789-2:2017. Display deviation ± 4%.
• Size: 5
• Measurement range N
• m: 6-50 N
• m
• Measurement range ft
• lb: 5-36 ft
• lb
• MAN
• m: 6 N
• m
• Nominal value N
• m: 50 N
• m
• N scale division
• m: 2 N
• m
• ft scale division
• lb: 1 ft
• lb
• Outside outlet square (inch): 3/8
• Length mm (L): 352 mm
• b1: 28 mm
• b2: 27.5 mm
• Height mm (h1): 23 mm
• Height mm (h2): 14.5 mm
• Number of teeth: 30
• DIN: DIN EN ISO 6789-2:2017
• LF: 293 mm
• Weight (g): 880 g
• Weight in kg: 0.88 kg
